RAM-Mounts Ball Mount 1.5", Size C

RAM-Mounts Ball Mount 1.5", Size C, with Sonar Bracket

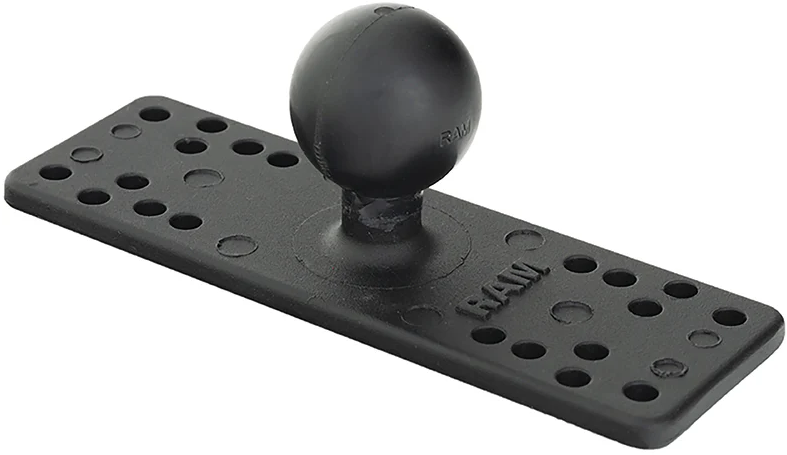

RAM-111BU, universal mounting plate, consists of a 1.5" diameter C-size rubber ball mounted at a right angle to a 6.25" x 2" rectangular plate. The plate features various pre-drilled holes that fit multiple electronic devices.

C-size ball adapter for 5"-9" sonar mounting optionsRAM® Mounts ball and mounting technology allows for nearly unlimited adjustability.Built from powder-coated marine-grade aluminum for durability and reliability in the most demanding marine environments.Lifetime warrantyMounting plate size: 6.25" x 2" (15.87x5.06cm)Ball size: C-size (1.5")Weight capacity: Standard use: 4 lbs (1.81 kg)Material: Marine-grade aluminumWeight: 185g

ADDITIONAL INFORMATION
6.25" x 2" rectangular base is a universal mounting platform with various mounting hole placements. In some applications, it may be necessary to drill more holes for proper device attachment.

Directly compatible with, among others, the following sonar devices:

Garmin:

ECHOMAP UHD2 5"ECHOMAP UHD2 7"GPSMAP 722xsGPSMAP 723GPSMAP 723xsvGPSMAP 742xsGPSMAP 743GPSMAP 743xsvStriker Plus 5cvStriker Vivid 5cvStriker Plus 7cvStriker Plus 7svStriker Vivid 5cvStriker Vivid 7cvStriker Vivid 7sv

Lowrance:

Elite FS 7HDS Carbon 7HDS LIVE 7Hook Reveal 7 Series
